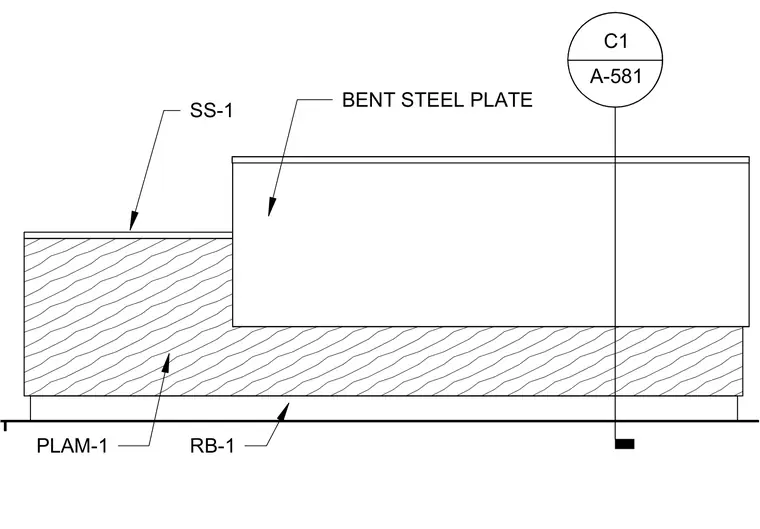

A bent steel plate forms the transaction counter element, set above a substrate faced with plastic laminate designated as PLAM-1 and a stainless steel surface finish designated as SS-1. A rubber base designated as RB-1 runs along the bottom edge of the assembly. The entire transaction side assembly is detailed with callouts referencing sheet A-581.
