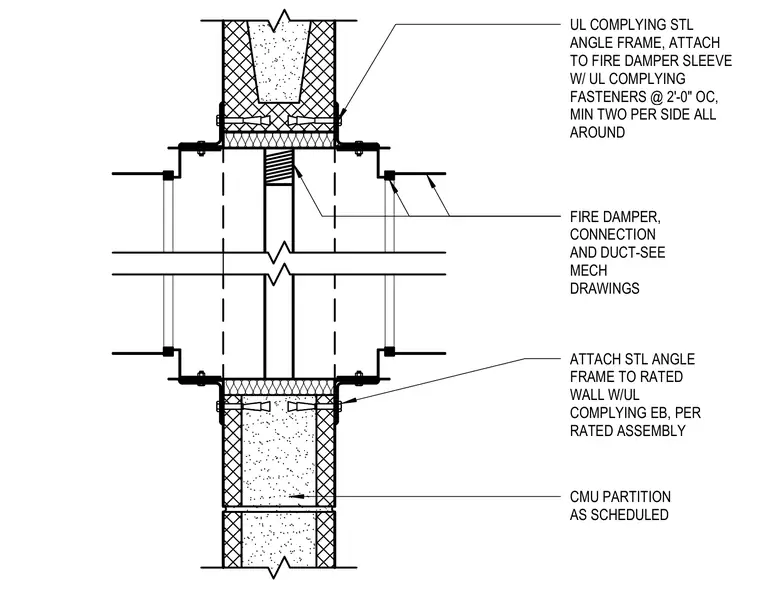

A UL-complying steel angle frame attaches to the fire damper sleeve using UL-complying fasteners spaced at two feet on center, with a minimum of two per side all around the perimeter. The steel angle frame fastens to the rated CMU partition using UL-complying expansion bolts per the rated assembly schedule. The fire damper connection and ductwork are sized and detailed per mechanical drawings.
UL COMPLYING STL ANGLE FRAME, ATTACH TO FIRE DAMPER SLEEVE W/ UL COMPLYING FASTENERS @ 2'-0" OC, MIN TWO PER SIDE ALL AROUND FIRE DAMPER, CONNECTION AND DUCT-SEE MECH DRAWINGS ATTACH STL ANGLE FRAME TO RATED WALL W/UL COMPLYING EB, PER RATED ASSEMBLY CMU PARTITION AS SCHEDULED
