Electrical Riser Diagram with Switchboard Feeders

Elements

About this detail

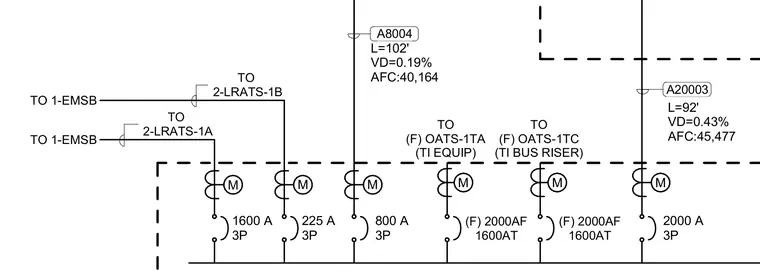

This electrical diagram shows multiple switchboard feeds connecting to various branch panels and equipment risers. Circuit details include 2000A, 1600A, 800A, and 225A three-phase protective devices with specific cable lengths, voltage drop percentages, and available fault currents. Feeders connect to tenant improvement equipment, bus risers, and emergency main switchboards. Metering points and conduit runs are indicated for each circuit path.
