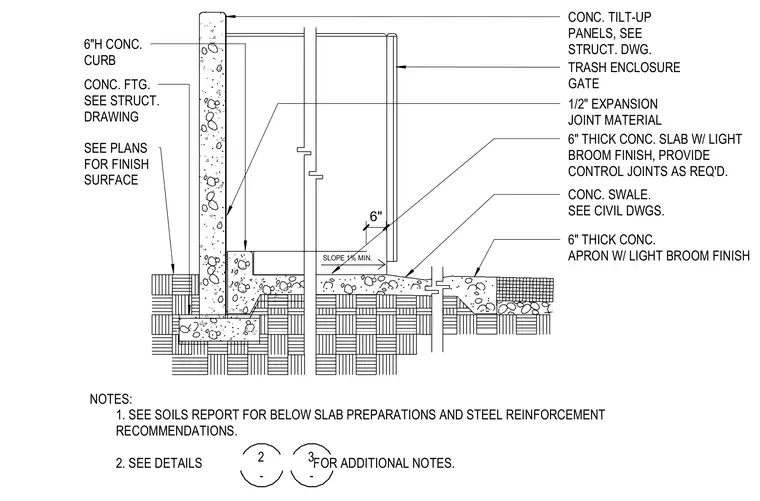

This wall section details a concrete trash enclosure assembly featuring a tilt-up concrete wall panel bearing on a concrete footing with a six-inch high concrete curb. A trash enclosure gate is mounted adjacent to the curb with a half-inch expansion joint material separating the elements. The slab consists of a six-inch thick concrete slab with a light broom finish and required control joints, sloping at one percent minimum toward a concrete swale. A six-inch thick concrete apron with a light broom finish extends past the gate assembly, with subgrade preparation directed per the soils report.
6"H CONC. CURB CONC. FTG. SEE STRUCT. DRAWING SEE PLANS FOR FINISH SURFACE CONC. TILT-UP PANELS, SEE STRUCT. DWG. TRASH ENCLOSURE GATE 1/2" EXPANSION JOINT MATERIAL 6" THICK CONC. SLAB W/ LIGHT BROOM FINISH, PROVIDE CONTROL JOINTS AS REQ'D. CONC. SWALE. SEE CIVIL DWGS. 6" THICK CONC. APRON W/ LIGHT BROOM FINISH NOTES: 1. SEE SOILS REPORT FOR BELOW SLAB PREPARATIONS AND STEEL REINFORCEMENT RECOMMENDATIONS. 2. SEE DETAILS FOR ADDITIONAL NOTES. 2 - 3 - 6" SLOPE 1% MIN.
