Mechanical equipment sits atop a vibration isolator supported by a level 22 gauge galvanized iron flashing pan over a modified bitumen membrane, fiberglass base sheet, and three-quarter-inch plywood. Fasteners pass through neoprene washers into the shaped four-inch wood curb, which features two-by-eight joists spaced at twelve inches on center minimum over a built-up roof over plywood deck. Blocking and framing are installed per structural drawings, requiring a minimum eight-inch clearance. Any securment of units into the horizontal platform surface requires a solid quarter-inch neoprene gasket with elastomeric sealant applied on the underside and top immediately prior to installing bolts.

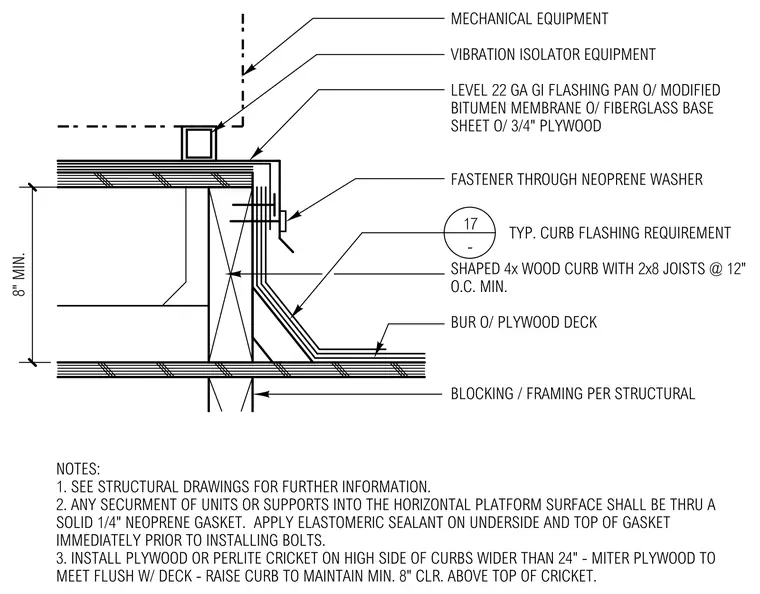

MECHANICAL EQUIPMENT VIBRATION ISOLATOR EQUIPMENT LEVEL 22 GA GI FLASHING PAN O/ MODIFIED BITUMEN MEMBRANE O/ FIBERGLASS BASE SHEET O/ 3/4" PLYWOOD FASTENER THROUGH NEOPRENE WASHER TYP. CURB FLASHING REQUIREMENT SHAPED 4x WOOD CURB WITH 2x8 JOISTS @ 12" O.C. MIN. BUR O/ PLYWOOD DECK BLOCKING / FRAMING PER STRUCTURAL NOTES: 1. SEE STRUCTURAL DRAWINGS FOR FURTHER INFORMATION. 2. ANY SECURMENT OF UNITS OR SUPPORTS INTO THE HORIZONTAL PLATFORM SURFACE SHALL BE THRU A SOLID 1/4" NEOPRENE GASKET. APPLY ELASTOMERIC SEALANT ON UNDERSIDE AND TOP OF GASKET IMMEDIATELY PRIOR TO INSTALLING BOLTS. 3. INSTALL PLYWOOD OR PERLITE CRICKET ON HIGH SIDE OF CURBS WIDER THAN 24" - MITER PLYWOOD TO MEET FLUSH W/ DECK - RAISE CURB TO MAINTAIN MIN. 8" CLR. ABOVE TOP OF CRICKET. 8" MIN. 17 -
