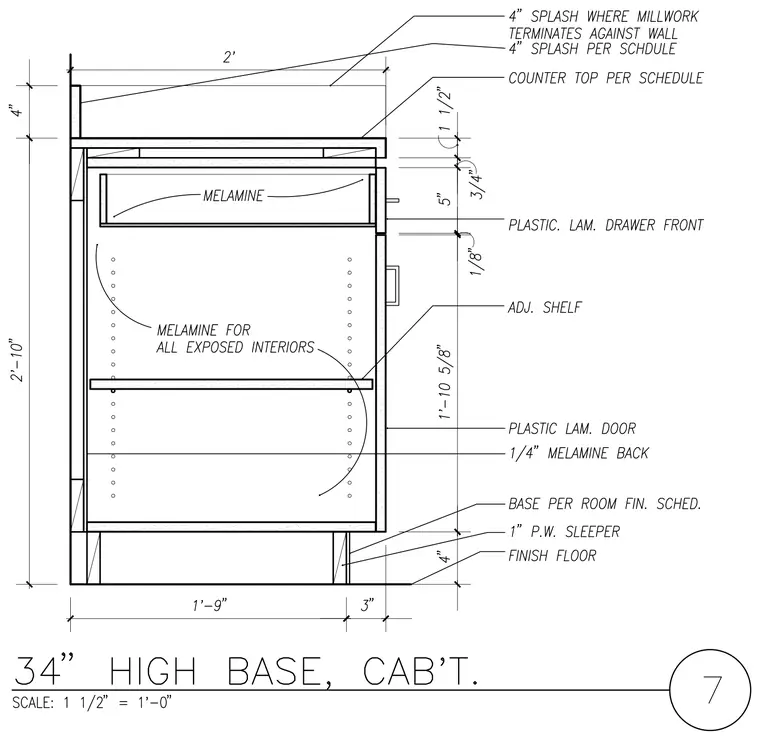

The base cabinet assembly consists of a countertop per schedule with a four-inch splash where millwork terminates against the wall, supported by a plastic laminate drawer front and plastic laminate door over a melamine interior carcass. The interior features an adjustable shelf and a one-fourth-inch melamine back. The unit rests on a one-inch plywood sleeper base above the finish floor, with a base material per the room finish schedule. Exposed interiors utilize melamine throughout.
