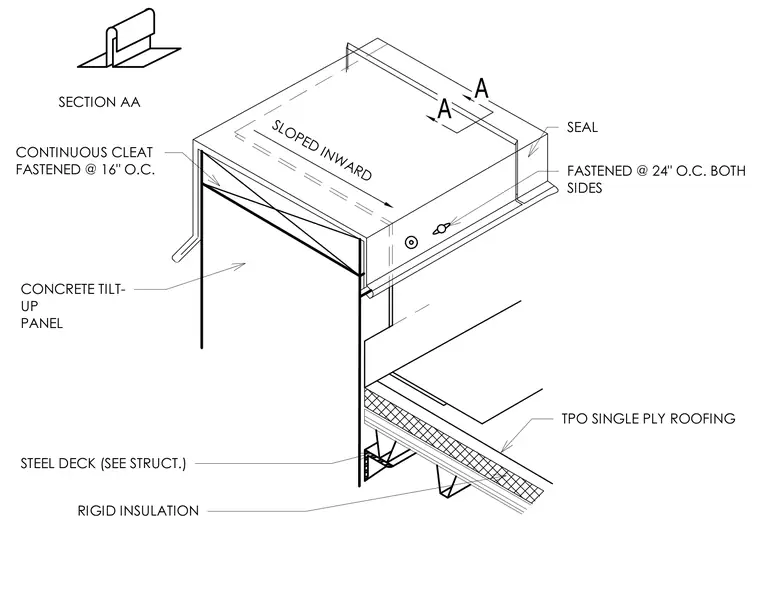

This isometric detail shows a parapet wall assembly terminating at a concrete tilt-up panel with a sloped-inward metal coping cap. The coping is secured by a continuous cleat fastened at sixteen inches on center and sealed at joints. TPO single-ply roofing membrane extends up the parapet and is fastened at twenty-four inches on center on both sides. The roof structure incorporates rigid insulation over a steel deck sized per structural drawings.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
