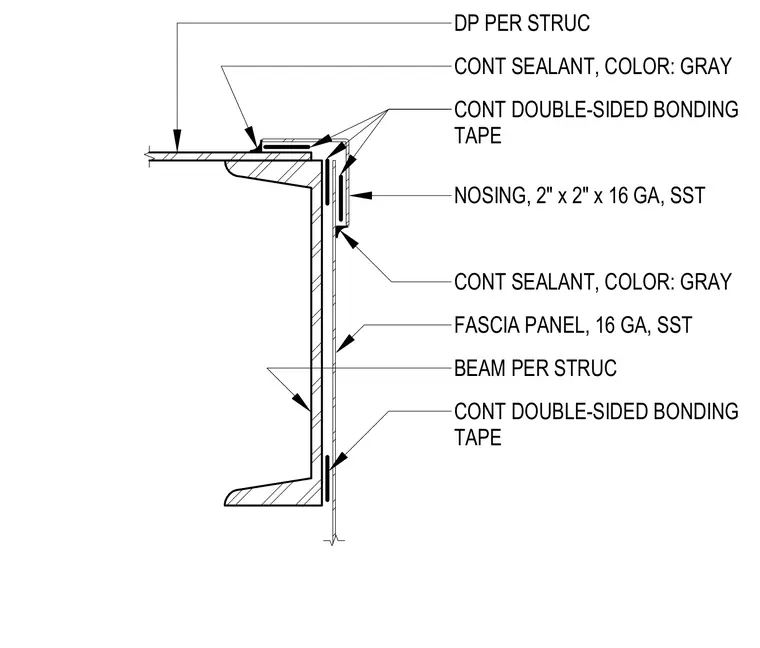

Sixteen-gauge stainless steel fascia panels mount to the structural stair beam using continuous double-sided bonding tape. A two-inch by two-inch by sixteen-gauge stainless steel nosing angles over the top edge of the beam. Continuous gray sealant finishes the joints at the top and bottom of the nosing and fascia assembly.
CONT SEALANT, COLOR: GRAY CONT DOUBLE-SIDED BONDING TAPE FASCIA PANEL, 16 GA, SST BEAM PER STRUC CONT DOUBLE-SIDED BONDING TAPE CONT SEALANT, COLOR: GRAY NOSING, 2" x 2" x 16 GA, SST DP PER STRUC
