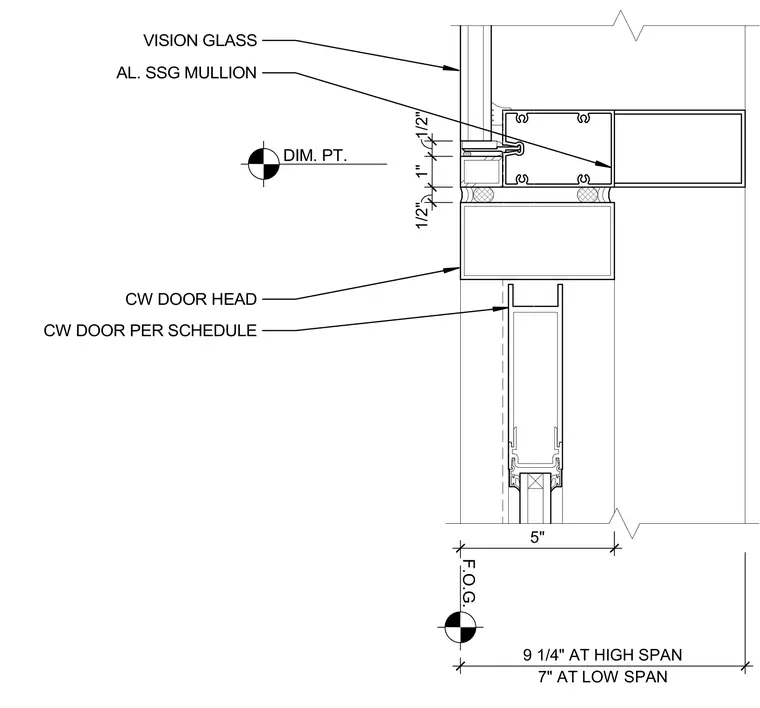

This architectural detail shows the head condition of a curtain wall door integrated with storefront framing and vision glass. An aluminum structural silicone glazed mullion supports the upper glass lite above the door head member. The curtain wall door is scheduled separately and set below the head frame assembly. Dimension markers locate the face of glass and vertical spans ranging from seven inches at low span to nine and one-quarter inches at high span.
DIM. PT. F.O.G. CW DOOR HEAD 1/2" 1" 1/2" CW DOOR PER SCHEDULE VISION GLASS AL. SSG MULLION 7" AT LOW SPAN 9 1/4" AT HIGH SPAN 5"
