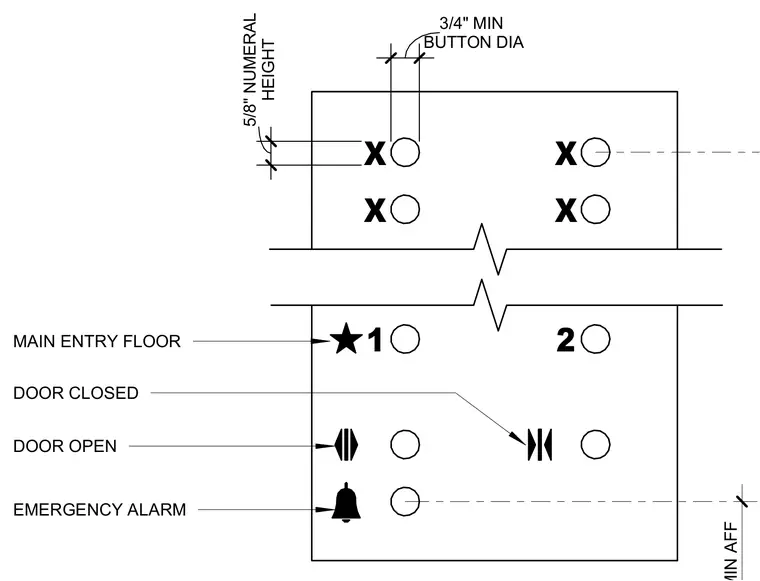

An elevator control panel layout details button dimensions and functional designations. The circular buttons require a minimum three-quarter-inch diameter with five-eighths-inch numeral heights. Labeled controls include floor numbers, main entry floor designation, door open, door closed, and emergency alarm.
X X X X 1 2 HEIGHT 5/8" NUMERAL BUTTON DIA 3/4" MIN EMERGENCY ALARM DOOR OPEN DOOR CLOSED MAIN ENTRY FLOOR
