Architectural · A-V4JMD

Egress Landing and Guardrail

Materials

weld

Elements

Walls Stairs Railings / Guards

Connections

Welded Connection

About this detail

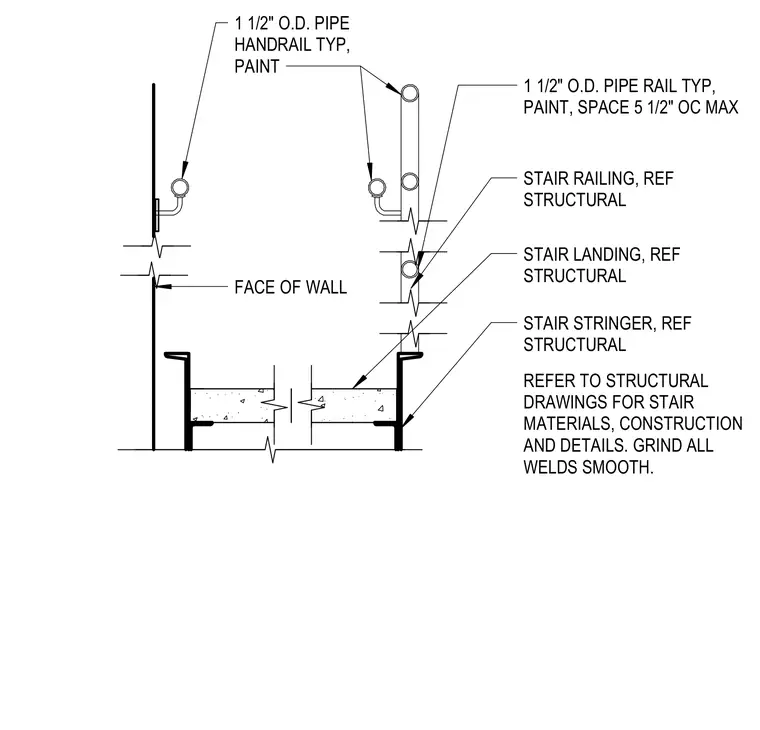

An egress stair landing and guardrail assembly includes a one-and-a-half-inch outside-diameter painted pipe handrail mounted to the face of the wall and a matching pipe railing system at the stair edge. The stair railing vertical members are spaced at five and one-half inches on center maximum. The stair landing, stringer, and stair railing construction reference the structural drawings for material specifications and structural details. All welded connections are ground smooth.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
