A floor sink assembly features a removable grate for access to a dome strainer and a drain pipe set at the bottom. The flooring contractor must grout in the gap between the sink and the surrounding floor. The three-quarter grate includes an open quadrant for drainage access.

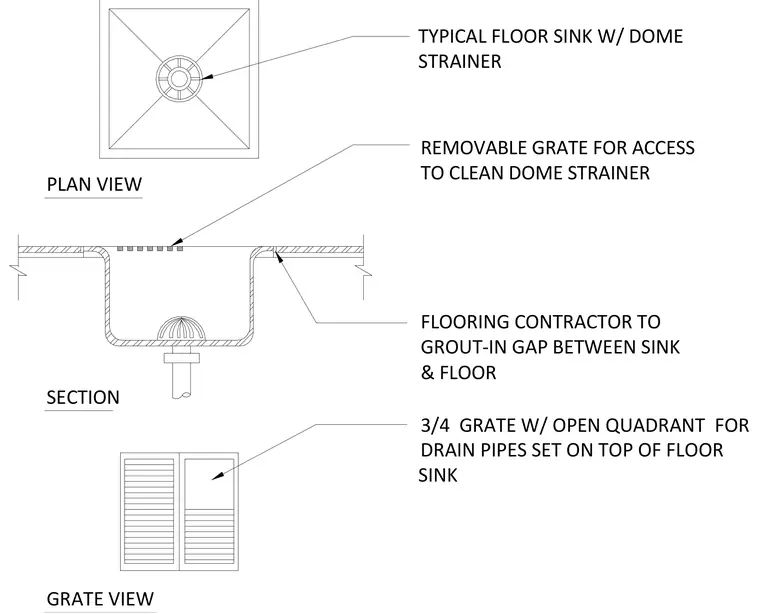

TYPICAL FLOOR SINK W/ DOME STRAINER REMOVABLE GRATE FOR ACCESS TO CLEAN DOME STRAINER FLOORING CONTRACTOR TO GROUT-IN GAP BETWEEN SINK & FLOOR 3/4 GRATE W/ OPEN QUADRANT FOR PLAN VIEW SECTION GRATE VIEW DRAIN PIPES SET ON TOP OF FLOOR SINK
