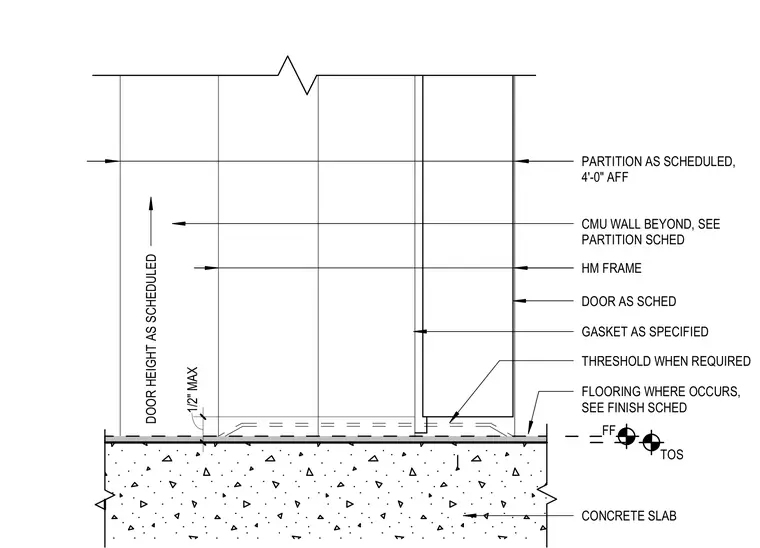

A hollow metal frame and door assembly bears on a concrete floor slab with finish flooring specified in the finish schedule. A threshold is provided when required, set above the finished floor with an allowance for clearance. A specified gasket is integrated into the frame assembly. A partition and CMU wall extend beyond the frame. Top of slab and finished floor elevations are marked.
TOS CONCRETE SLAB FLOORING WHERE OCCURS, SEE FINISH SCHED DOOR AS SCHED HM FRAME DOOR HEIGHT AS SCHEDULED FF PARTITION AS SCHEDULED, 4'-0" AFF THRESHOLD WHEN REQUIRED 1/2" MAX CMU WALL BEYOND, SEE PARTITION SCHED GASKET AS SPECIFIED
