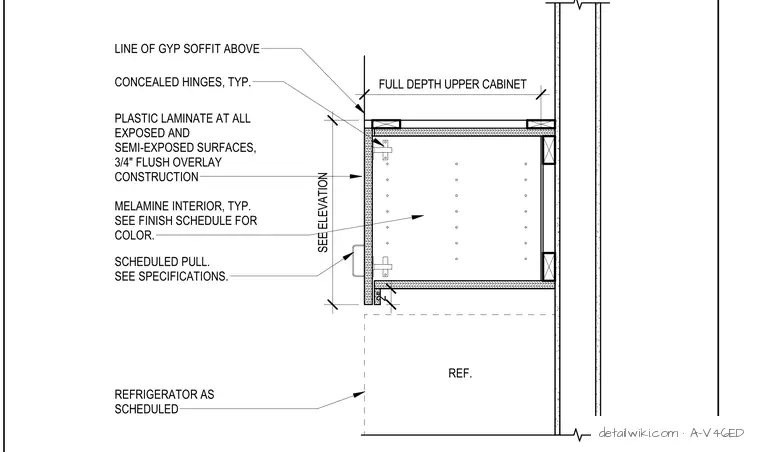

This assembly features a full-depth upper cabinet constructed with three-quarter-inch flush overlay panels. All exposed and semi-exposed surfaces are finished with plastic laminate, while the interior is lined with melamine. The cabinet doors are equipped with concealed hinges and a scheduled pull. The unit is positioned beneath a gypsum soffit and is mounted against a wall, with the refrigerator space located directly below.
