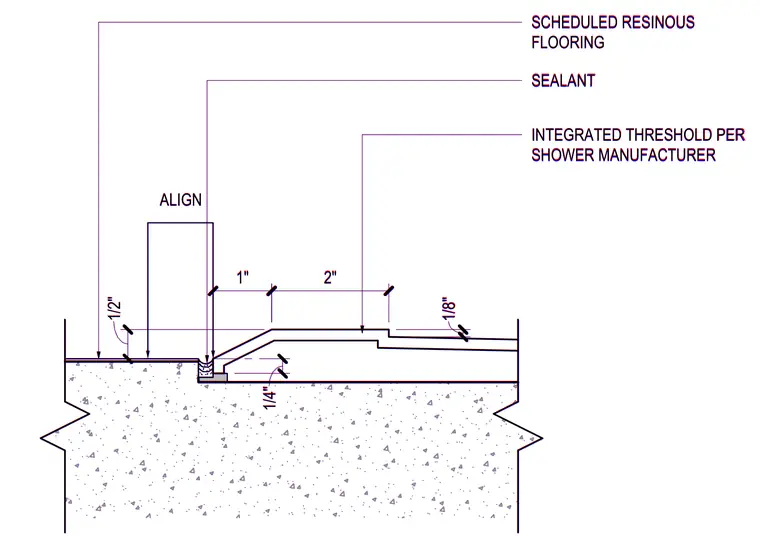

An integrated threshold per the shower manufacturer sits atop a concrete substrate and aligns with scheduled resinous flooring. A one-eighth-inch sealant joint seals the interface between the threshold and adjacent flooring. Dimensions detail the one-quarter-inch, one-half-inch, one-inch, and two-inch alignment spacings across the threshold assembly.
ALIGN 2" 1/2" 1" SCHEDULED RESINOUS FLOORING INTEGRATED THRESHOLD PER SHOWER MANUFACTURER 1/8" SEALANT 1/4" ALIGN 2" 1/2" 1" SCHEDULED RESINOUS FLOORING INTEGRATED THRESHOLD PER SHOWER MANUFACTURER 1/8" SEALANT 1/4"
