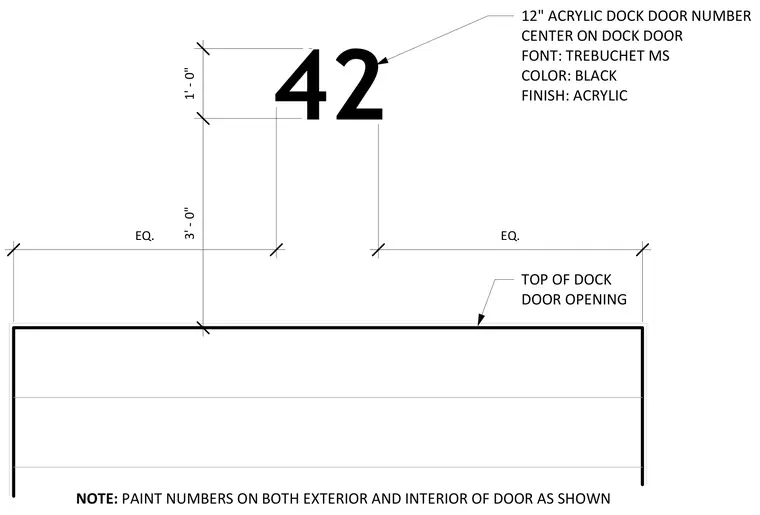

Twelve-inch acrylic numbers are centered on the dock door with black finish in Trebuchet MS font. The number is positioned three feet above the top of the dock door opening with equal spacing margins on each side. Numbers are painted on both the exterior and interior of the door.
12" ACRYLIC DOCK DOOR NUMBER CENTER ON DOCK DOOR FONT: TREBUCHET MS COLOR: BLACK FINISH: ACRYLIC TOP OF DOCK DOOR OPENING 42 3' - 0" 1' - 0" EQ. EQ. NOTE: PAINT NUMBERS ON BOTH EXTERIOR AND INTERIOR OF DOOR AS SHOWN
