Architectural · A-V3Q2V

Facade Fin Support Structure at Parapet Corner Plan Detail

Materials

Concrete Steel Glass / Glazing Composite

Elements

Columns Beams Walls Curtain Walls Facades / Cladding Parapets Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection Deck Attachment

About this detail

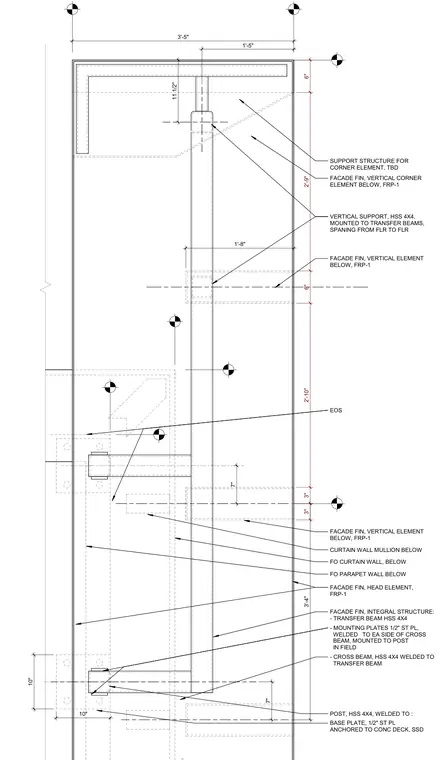

Exterior facade fin and structural support assembly at the building corner near the parapet. A vertical support member composed of an HSS 4x4 hollow structural section spans floor-to-floor and mounts to transfer beams. The integral structure incorporates an HSS 4x4 transfer beam with a welded HSS 4x4 cross beam connected via one-half-inch steel mounting plates welded to each side of the cross beam and field-mounted to the post. The vertical post sits on a one-half-inch steel base plate anchored to the concrete deck and stainless steel deck. The corner element is supported by an exterior FRP-1 facade fin element with head and vertical components interfacing with the curtain wall mullion below.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
