Loading Dock Section at Insulated Precast Panel

Materials

Concrete Steel Timber / Wood

Elements

Walls Doors Floors / Slabs Insulation Drainage Site / Paving Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Welded Connection Bolted Connection Embed Plate

About this detail

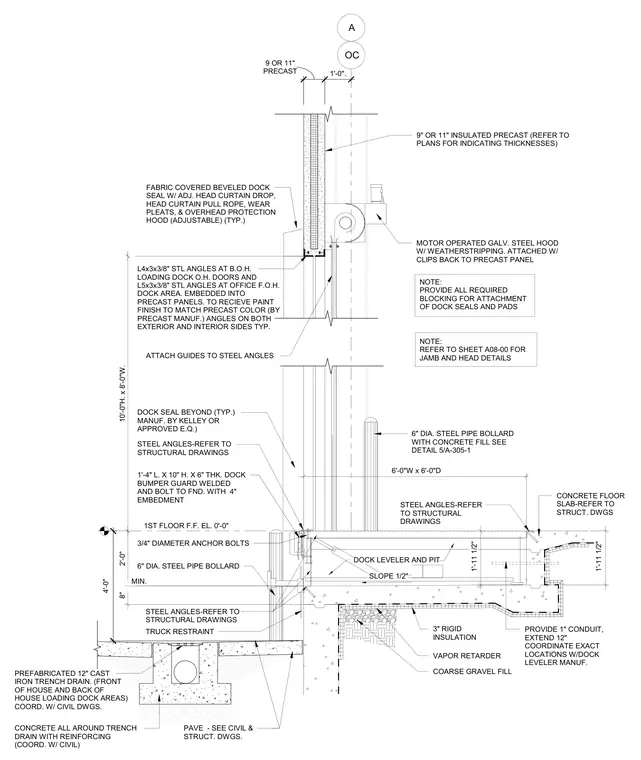

This wall section details a loading dock assembly intersecting with a nine or eleven inch insulated precast concrete panel wall. The dock pit includes a concrete floor slab over coarse gravel fill, vapor retarder, and rigid insulation, complete with a dock leveler and embedded steel angles. Exterior elements feature a fabric-covered beveled dock seal with an adjustable head curtain and a motor-operated galvanized steel hood with weatherstripping attached back to the precast panel. A six-inch diameter steel pipe bollard with concrete fill and a dock bumper guard welded and bolted to the foundation with four-inch embedment protect the opening. A prefabricated cast iron trench drain with reinforcing is located at the approach slab.
