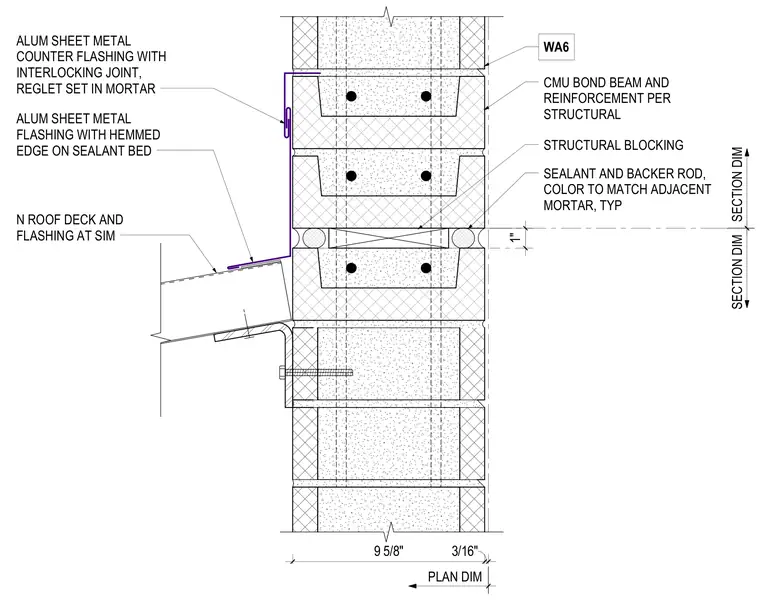

An aluminum sheet metal counter flashing with an interlocking joint is set into a reglet in the mortar of a concrete masonry unit wall. Below this, a three-sixteenths-inch aluminum sheet metal flashing with a hemmed edge rests on a sealant bed above the roof deck. A structural blocking and a one-inch joint with sealant and backer rod color-matched to the adjacent mortar separate the wall courses. The concrete masonry unit bond beam incorporates reinforcement per structural requirements.
1" SECTION DIM SECTION DIM PLAN DIM WA6 CMU BOND BEAM AND REINFORCEMENT PER STRUCTURAL SEALANT AND BACKER ROD, COLOR TO MATCH ADJACENT MORTAR, TYP STRUCTURAL BLOCKING N ROOF DECK AND FLASHING AT SIM 9 5/8" 3/16" ALUM SHEET METAL FLASHING WITH HEMMED EDGE ON SEALANT BED ALUM SHEET METAL COUNTER FLASHING WITH INTERLOCKING JOINT, REGLET SET IN MORTAR
