Architectural · A-V3GK2

Parapet Wall and Roof Edge Detail at Metal Stud Framing

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Facades / Cladding Roofs Parapets Decks Waterproofing / Flashing Insulation

Connections

Base Plate / Anchorage Deck Attachment

About this detail

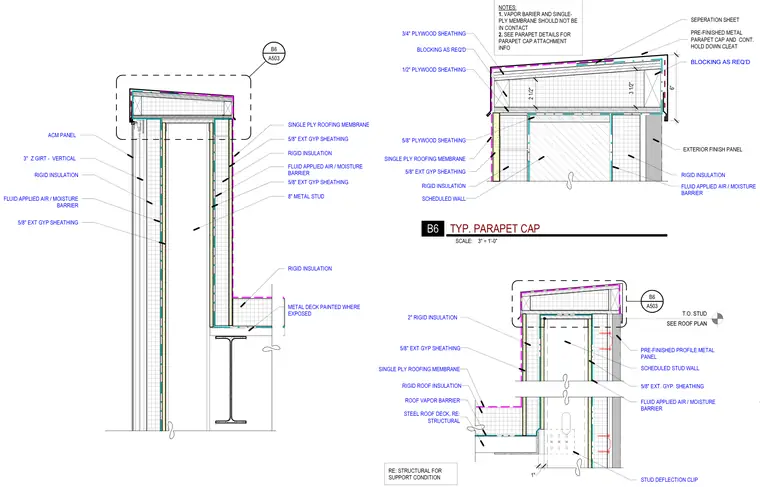

A roof-to-wall intersection features a metal panel clad parapet bearing on a steel roof deck and framing. The parapet top incorporates a pre-finished metal cap over continuous hold-down cleats, blocking, and plywood sheathing, separated from the single-ply roofing membrane and vapor barrier. The backup assembly consists of eight-inch metal studs, exterior gypsum sheathing, fluid-applied air and moisture barriers, and continuous rigid insulation. Exterior finishes include pre-finished profile metal panels and ACM panels mounted on vertical three-inch Z-girts. At the roof edge, a one-inch stud deflection clip accommodates structural movement above the structural steel beam and painted metal deck.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
