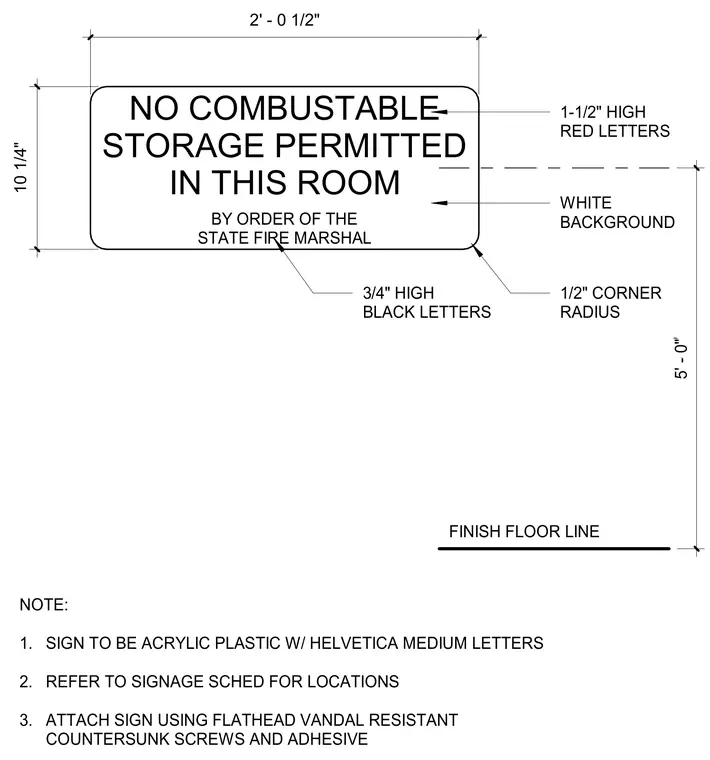

An acrylic plastic storage sign features 1-1/2-inch high red letters and 3/4-inch high black letters on a white background with a 1/2-inch corner radius. The sign measures 2 feet 1/2 inch wide by 10-1/4 inches high and mounts 5 feet above the finish floor line. Flathead vandal-resistant countersunk screws and adhesive secure the sign in place.
NO COMBUSTABLE STORAGE PERMITTED IN THIS ROOM BY ORDER OF THE STATE FIRE MARSHAL 2' - 0 1/2" 10 1/4" 1-1/2" HIGH RED LETTERS WHITE BACKGROUND 1/2" CORNER RADIUS 3/4" HIGH BLACK LETTERS 2' - 0" FINISH FLOOR LINE 5' - 0" NOTE: 1. SIGN TO BE ACRYLIC PLASTIC W/ HELVETICA MEDIUM LETTERS 2. REFER TO SIGNAGE SCHED FOR LOCATIONS 3. ATTACH SIGN USING FLATHEAD VANDAL RESISTANT COUNTERSUNK SCREWS AND ADHESIVE
