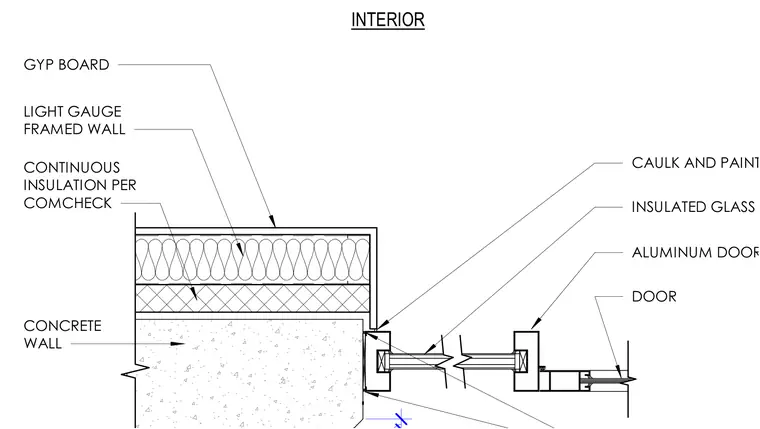

An aluminum door frame integrates with a concrete wall and adjacent light gauge framed wall with interior gypsum board. Continuous insulation is installed per ComCheck requirements against the exterior concrete. The joint between the aluminum frame and the concrete wall is sealed with caulking. An insulated glass door assembly finishes the opening.
DOOR INSULATED GLASS CONCRETE WALL ALUMINUM DOOR FRAME CAULK AND PAINT LIGHT GAUGE FRAMED WALL GYP BOARD CONTINUOUS INSULATION PER COMCHECK INTERIOR
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
