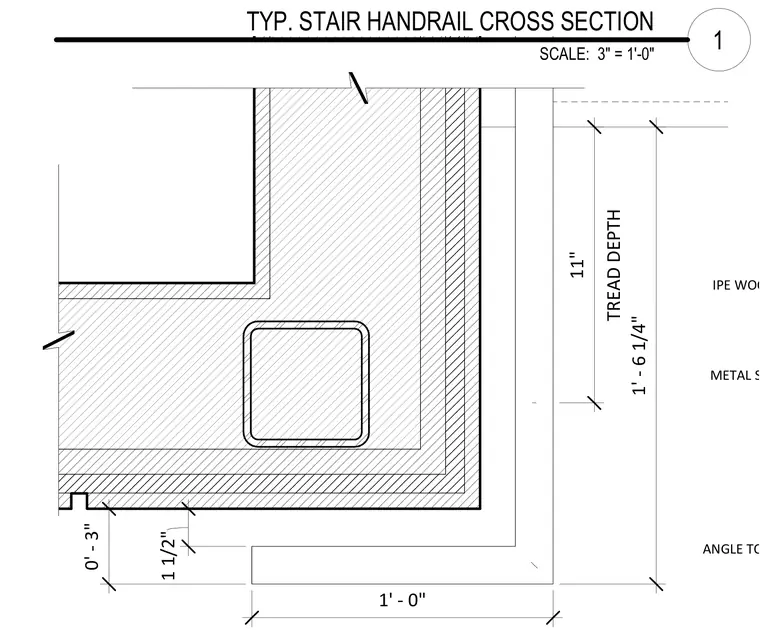

A typical stair handrail cross section featuring an Ipe wood tread and a metal steel riser angle connected to the stringer. The assembly includes an eleven-inch tread depth with overall dimensioning of one foot six and a quarter inches and one foot zero inches. Clearances and dimensional increments of one and a half inches and three inches are established for the tread and riser profile.
IPE WOOD TREAD METAL STEEL RISER ANGLE TO STRINGER 1 1/2" 1' - 0" 1' - 6 1/4" TREAD DEPTH 11" 0' - 3" SCALE: 3" = 1'-0" 1 TYP. STAIR HANDRAIL CROSS SECTION
