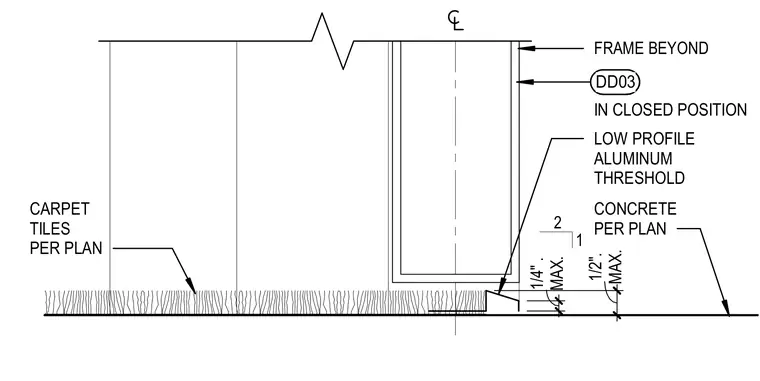

A low profile aluminum threshold in the closed position sits above a concrete slab sized per plan. Carpet tiles are installed adjacent to the threshold with specified vertical clearances of one-quarter inch maximum and one-half inch maximum. A frame beyond is referenced with a detail callout.
LOW PROFILE ALUMINUM THRESHOLD IN CLOSED POSITION CONCRETE PER PLAN CARPET TILES PER PLAN 2 1 MAX. 1/4" . FRAME BEYOND DD03 MAX. 1/2".
