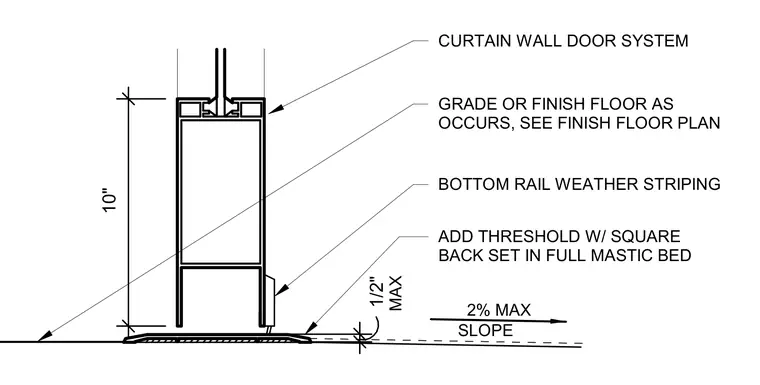

A curtain wall door sill transitions to the finish floor with a maximum two percent slope. A threshold with a square back is set in a full mastic bed at the exterior base. The door bottom rail includes integrated weather stripping above a ten inch high rail section.
10" 1/2" MAX SLOPE 2% MAX CURTAIN WALL DOOR SYSTEM GRADE OR FINISH FLOOR AS OCCURS, SEE FINISH FLOOR PLAN ADD THRESHOLD W/ SQUARE BACK SET IN FULL MASTIC BED BOTTOM RAIL WEATHER STRIPING
