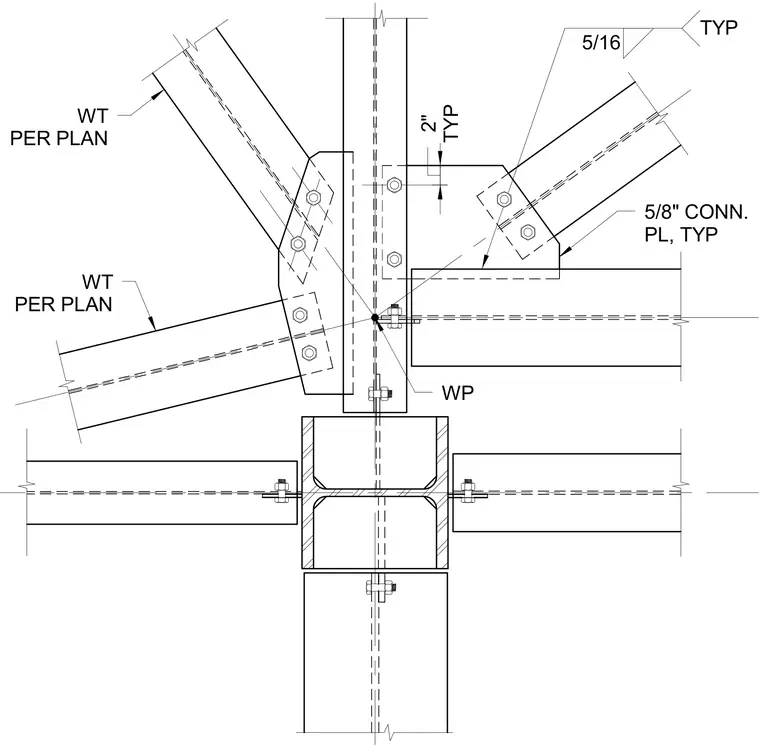

Structural steel truss members with shapes sized per plan frame into a vertical column at a designated working point. Five-eighths-inch typical connection plates tie the diagonal and horizontal WT members into the joint. Five-sixteenths-inch typical fillet welds secure the gusset plates and framing elements. A two-inch typical clearance dimension is maintained at the gusset plate intersection.
2" TYP 5/8" CONN. PL, TYP 5/16 TYP WT PER PLAN WT PER PLAN WP
