Auditorium and Exit Corridor Partition Detail at Concrete Tilt-Up Wall

Materials

Concrete Steel Cold-formed Steel Timber / Wood

Elements

About this detail

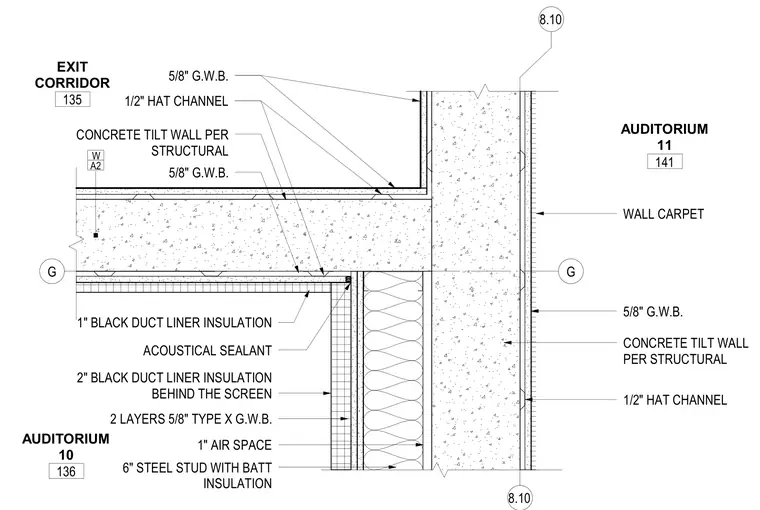

The assembly features a concrete tilt-up wall functioning as a partition between spaces, finished with one-half-inch hat channels and five-eighths-inch gypsum wallboard on both sides, with wall carpet applied on the auditorium side. An adjacent partition consists of six-inch steel studs with batt insulation, a one-inch air space, two layers of five-eighths-inch Type X gypsum wallboard, one-inch and two-inch black duct liner insulation, and acoustical sealant at the intersection. The corridor side utilizes similar gypsum wallboard on hat channels secured to the structural concrete wall.
