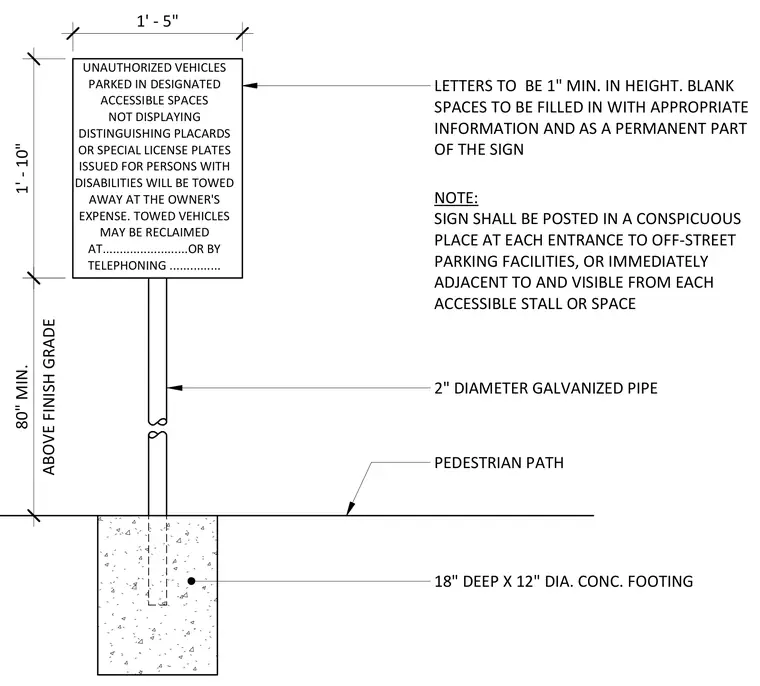

An accessible parking sign measuring one foot five inches wide by one foot ten inches high mounts atop a two-inch diameter galvanized pipe. The pipe extends down to a concrete footing measuring twelve inches in diameter by eighteen inches deep. The bottom of the sign maintains a minimum vertical clearance of eighty inches above the finish grade of the pedestrian path. The regulatory text panel specifies towing provisions for unauthorized vehicles parked in designated accessible spaces.
UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT THE OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT.........................OR BY TELEPHONING ............... PEDESTRIAN PATH NOTE: SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE AT EACH ENTRANCE TO OFF-STREET PARKING FACILITIES, OR IMMEDIATELY ADJACENT TO AND VISIBLE FROM EACH ACCESSIBLE STALL OR SPACE 2" DIAMETER GALVANIZED PIPE LETTERS TO BE 1" MIN. IN HEIGHT. BLANK SPACES TO BE FILLED IN WITH APPROPRIATE INFORMATION AND AS A PERMANENT PART OF THE SIGN 18" DEEP X 12" DIA. CONC. FOOTING 1' - 10" 1' - 5" ABOVE FINISH GRADE 80" MIN.
