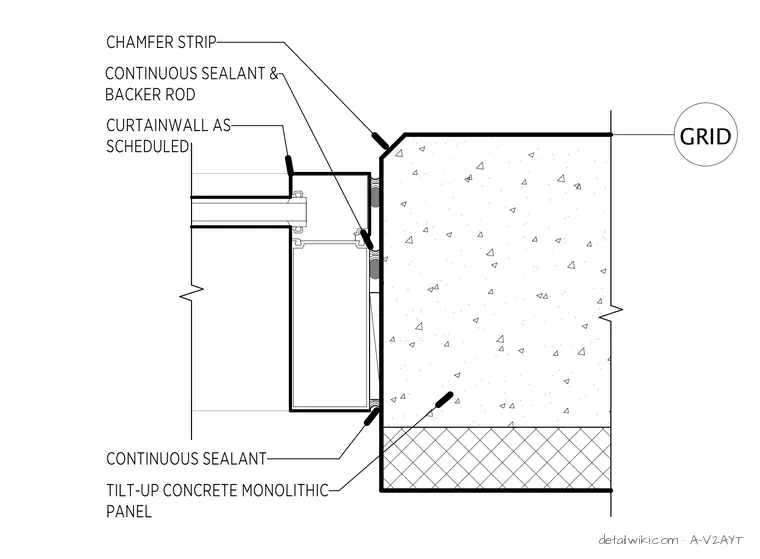

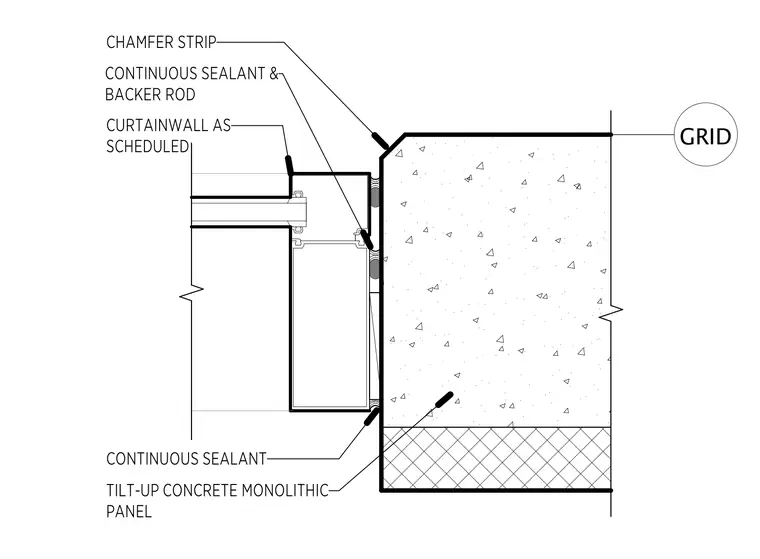

The curtain wall assembly, as scheduled, terminates at a tilt-up concrete monolithic panel. The interface between the aluminum curtain wall frame and the concrete edge is sealed with continuous sealant and backer rod. A chamfer strip is provided at the exterior corner of the concrete panel. The concrete panel is aligned with the building grid.
