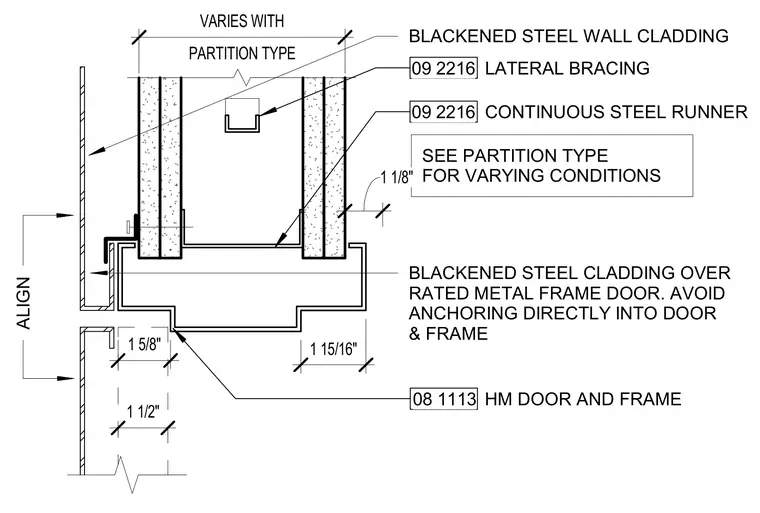

This interior wall head detail shows a gypsum board partition assembly finished with blackened steel wall cladding. A hollow metal door and frame receives an alignment with the adjacent wall cladding while avoiding direct anchoring into the door and frame. Continuous steel runners and lateral bracing support the partition framing according to varying partition conditions.
SEE PARTITION TYPE FOR VARYING CONDITIONS 1 15/16" PARTITION TYPE VARIES WITH 09 2216 LATERAL BRACING 09 2216 CONTINUOUS STEEL RUNNER 1 1/8" 1 1/2" 1 5/8" ALIGN 08 1113 HM DOOR AND FRAME BLACKENED STEEL CLADDING OVER RATED METAL FRAME DOOR. AVOID ANCHORING DIRECTLY INTO DOOR & FRAME BLACKENED STEEL WALL CLADDING
