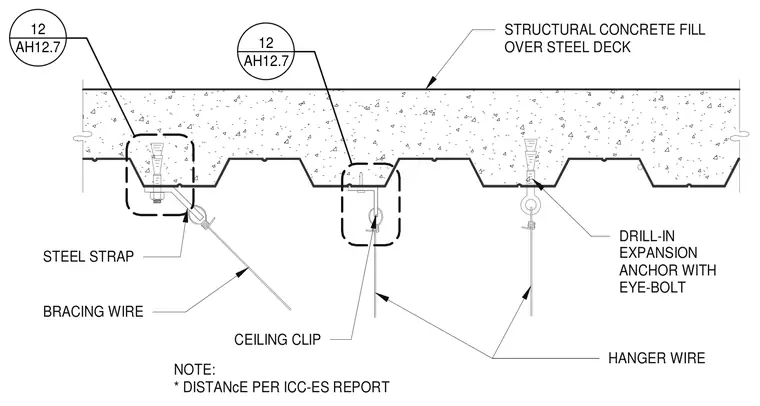

Ceiling hanger wires and steel strap bracing are anchored to a structural concrete fill over a steel deck using drill-in expansion anchors with eye-bolts. The assembly incorporates ceiling clips and hanger wires secured per ICC-ES report distance guidelines. Steel straps provide lateral bracing for the suspended ceiling system connected via specialized hardware.
STEEL STRAP BRACING WIRE NOTE: * DISTANcE PER ICC-ES REPORT CEILING CLIP DRILL-IN EXPANSION ANCHOR WITH EYE-BOLT HANGER WIRE STRUCTURAL CONCRETE FILL OVER STEEL DECK AH12.7 12 AH12.7 12
