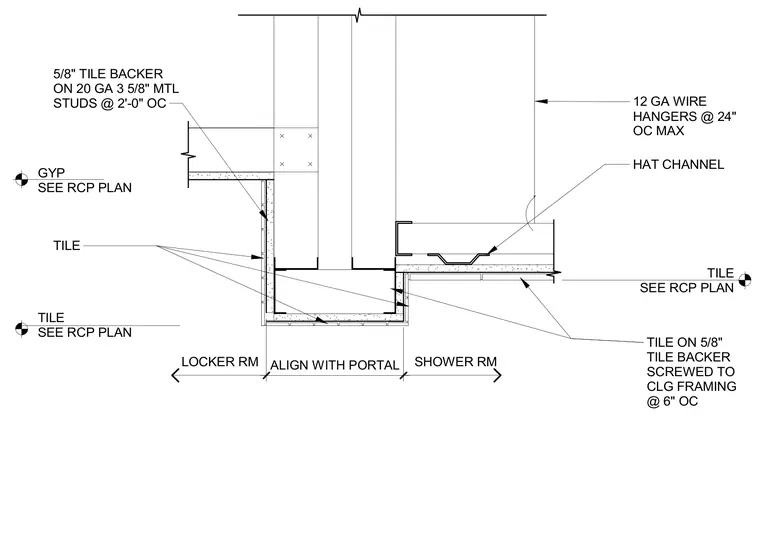

This architectural detail shows a ceiling soffit and wall partition junction separating a locker room and shower room. The vertical drop is framed with 20-gauge 3-5/8 inch metal studs spaced at 2 feet on center, faced with 5/8 inch tile backer board and finished with tile. The ceiling in the shower room uses hat channels supported by 12-gauge wire hangers spaced at 24 inches on center maximum, with 5/8 inch tile backer screwed directly to the ceiling framing at 6 inches on center. The adjacent locker room ceiling finish transitions to gypsum board per the reflected ceiling plan.
SHOWER RM LOCKER RM TILE ON 5/8" TILE BACKER SCREWED TO CLG FRAMING @ 6" OC 5/8" TILE BACKER ON 20 GA 3 5/8" MTL STUDS @ 2'-0" OC TILE HAT CHANNEL 12 GA WIRE HANGERS @ 24" OC MAX TILE SEE RCP PLAN GYP SEE RCP PLAN TILE SEE RCP PLAN ALIGN WITH PORTAL
