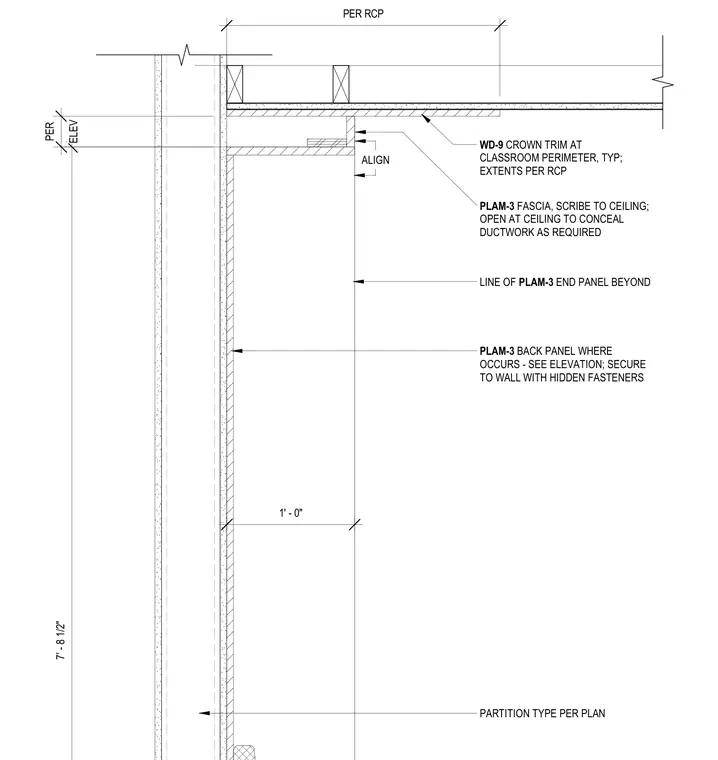

A plastic laminate back panel and fascia are secured to the partition wall with hidden fasteners and scribed to the ceiling. Wood crown trim runs along the classroom perimeter at the top of the casework. The assembly maintains an open ceiling condition to conceal ductwork as required per the reflected ceiling plan. An end panel aligns with the casework depth set at one foot zero inches from the wall.
PER RCP 7' - 8 1/2" LINE OF PLAM-3 END PANEL BEYOND WD-9 CROWN TRIM AT CLASSROOM PERIMETER, TYP; EXTENTS PER RCP PLAM-3 FASCIA, SCRIBE TO CEILING; OPEN AT CEILING TO CONCEAL DUCTWORK AS REQUIRED ELEV PER PARTITION TYPE PER PLAN 1' - 0" ALIGN PLAM-3 BACK PANEL WHERE OCCURS - SEE ELEVATION; SECURE TO WALL WITH HIDDEN FASTENERS
