A fiber cement panel is fastened using a panel clip located right above the starter bar. The assembly utilizes a one-half-inch hat channel fastened to a Z-girt over a weather-resistive barrier per specification. A Perm-A-Barrier Ultra self-adhered flashing extends a minimum of six inches with through-wall flashing at the base. The weather-resistive barrier wraps up and around the wall transition to the wood soffit and metal track system.

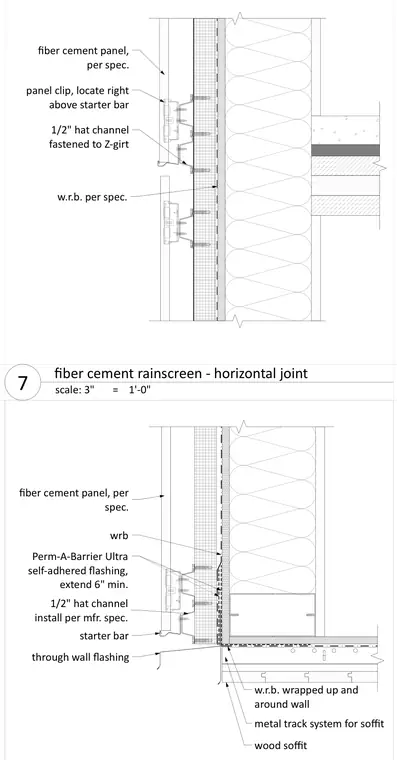

w.r.b. per spec. 1/2" hat channel fastened to Z-girt fiber cement panel, per spec. panel clip, locate right above starter bar wood soffit metal track system for soffit w.r.b. wrapped up and around wall wrb Perm-A-Barrier Ultra self-adhered flashing, extend 6" min. 1/2" hat channel install per mfr. spec. fiber cement panel, per spec. starter bar through wall flashing scale: 3" = 1'-0" 7 fiber cement rainscreen - horizontal joint
