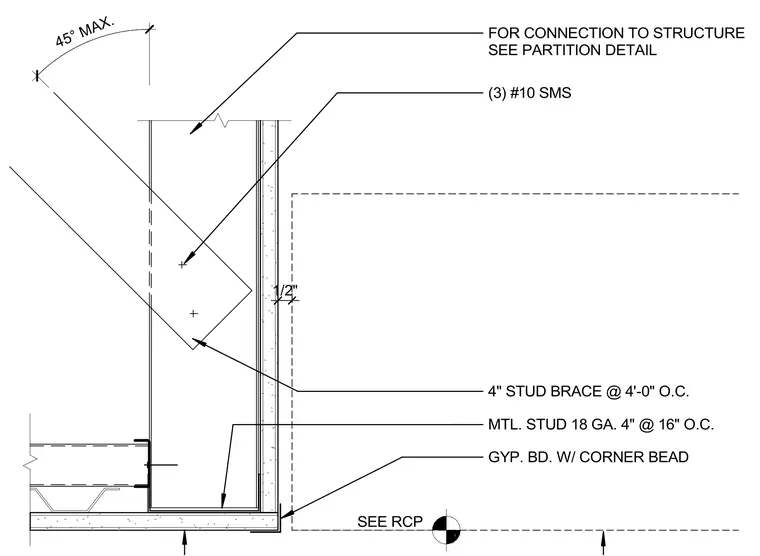

A four-inch metal stud with an eighteen gauge thickness spaced at sixteen inches on center supports the gypsum board ceiling transition. A four-inch metal stud brace angled at forty-five degrees maximum connects to the framing using three number ten sheet metal screws spaced at four feet on center. Gypsum board finished with a corner bead wraps the transition assembly.
FOR CONNECTION TO STRUCTURE SEE PARTITION DETAIL (3) #10 SMS 4" STUD BRACE @ 4'-0" O.C. MTL. STUD 18 GA. 4" @ 16" O.C. GYP. BD. W/ CORNER BEAD SEE RCP 45° MAX. 1/2"
