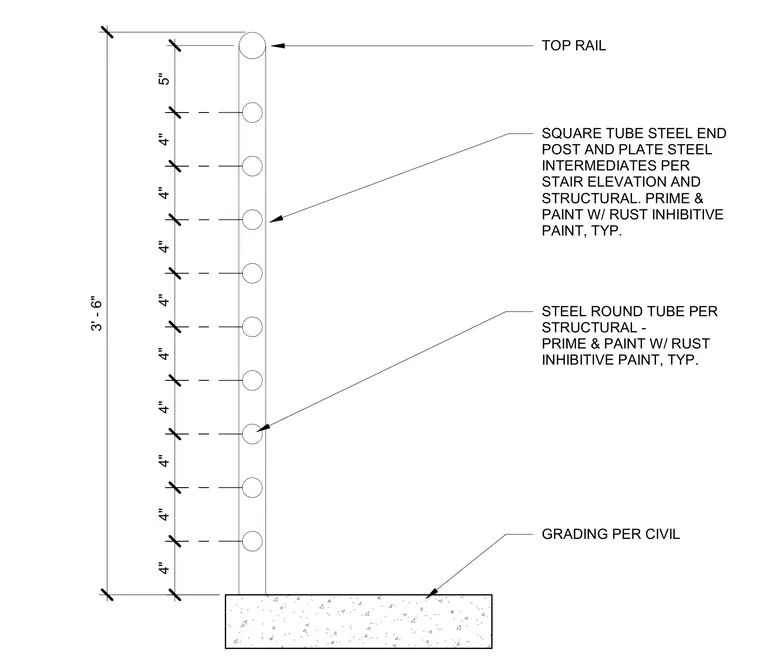

The assembly features a steel round tube top rail supported by square tube steel end posts and plate steel intermediates, positioned above finished grading. The guardrail stands at a total height of three feet six inches, with intermediate horizontal round tubes spaced evenly at four-inch increments. All steel elements are finished with a prime and paint coat utilizing a rust-inhibitive paint. Sizing for the top rail, posts, and intermediates is coordinated per structural drawings and stair elevations.
TOP RAIL STEEL ROUND TUBE PER STRUCTURAL - PRIME & PAINT W/ RUST INHIBITIVE PAINT, TYP. GRADING PER CIVIL SQUARE TUBE STEEL END POST AND PLATE STEEL INTERMEDIATES PER STAIR ELEVATION AND STRUCTURAL. PRIME & PAINT W/ RUST INHIBITIVE PAINT, TYP. 5" 4" 4" 4" 4" 4" 4" 4" 4" 4" 3' - 6"
