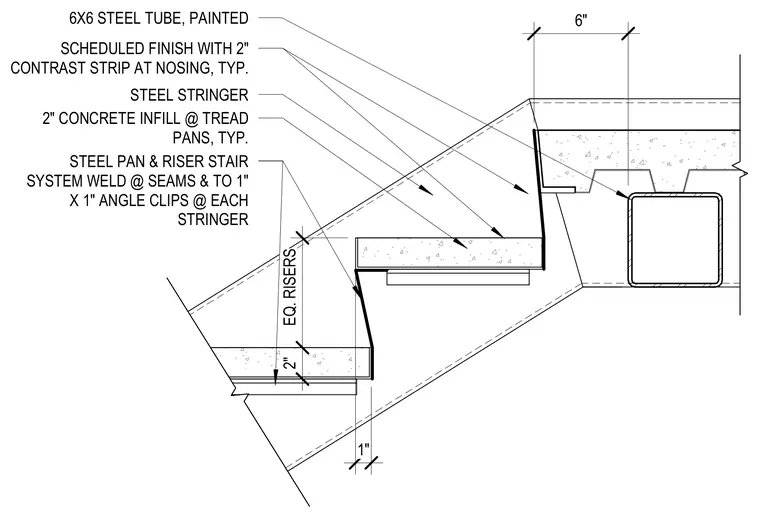

A steel pan and riser stair system connects to a 6x6 painted steel tube landing using welded seams and 1" x 1" angle clips at each stringer. The stair treads feature a 2-inch concrete infill over steel pans, with equal risers and a scheduled finish including a 2-inch contrast strip at the nosing.
EQ. RISERS 2" 1" STEEL STRINGER 2" CONCRETE INFILL @ TREAD PANS, TYP. SCHEDULED FINISH WITH 2" CONTRAST STRIP AT NOSING, TYP. STEEL PAN & RISER STAIR SYSTEM WELD @ SEAMS & TO 1" X 1" ANGLE CLIPS @ EACH STRINGER 6X6 STEEL TUBE, PAINTED 6"
