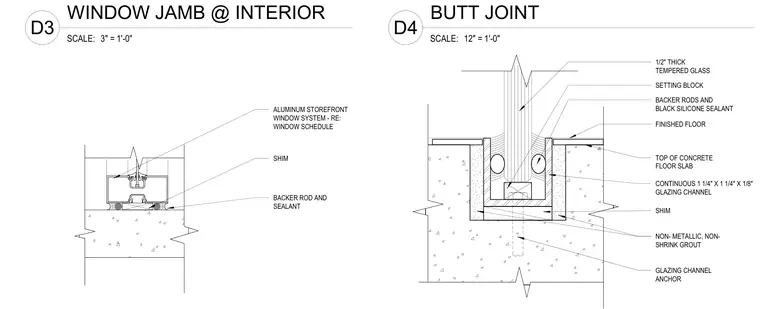

A half-inch thick tempered glass pane seats on a setting block inside a continuous one and one-quarter inch by one and one-quarter inch by one-eighth inch aluminum glazing channel. The glazing channel anchors into the top of a concrete floor slab using non-metallic, non-shrink grout and shims for alignment. Backer rods and black silicone sealant seal the joint on both sides of the glass at the finished floor level.
ALUMINUM STOREFRONT WINDOW SYSTEM - RE: WINDOW SCHEDULE SHIM BACKER ROD AND SEALANT 1/2" THICK TEMPERED GLASS SETTING BLOCK BACKER RODS AND BLACK SILICONE SEALANT FINISHED FLOOR TOP OF CONCRETE FLOOR SLAB CONTINUOUS 1 1/4" X 1 1/4" X 1/8" GLAZING CHANNEL SHIM GLAZING CHANNEL ANCHOR NON- METALLIC, NON- SHRINK GROUT SCALE: 12" = 1'-0" D4 BUTT JOINT SCALE: 3" = 1'-0" D3 WINDOW JAMB @ INTERIOR
