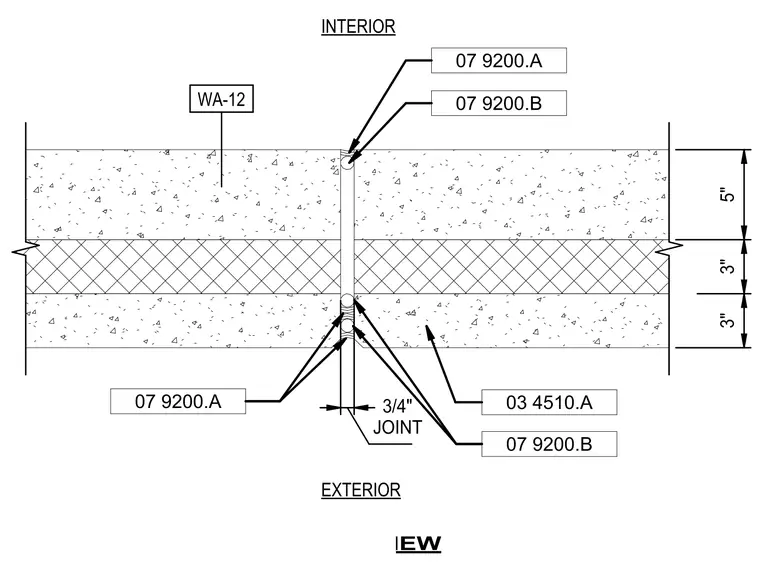

This vertical expansion joint assembly is integrated into a composite wall system consisting of a five-inch concrete layer, a three-inch insulation or core layer, and a three-inch concrete layer. The joint maintains a three-quarter inch width throughout the assembly. Sealant and joint filler materials are specified by reference codes 07 9200.A and 07 9200.B, while the concrete components are referenced by 03 4510.A. The assembly is identified as WA-12.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
