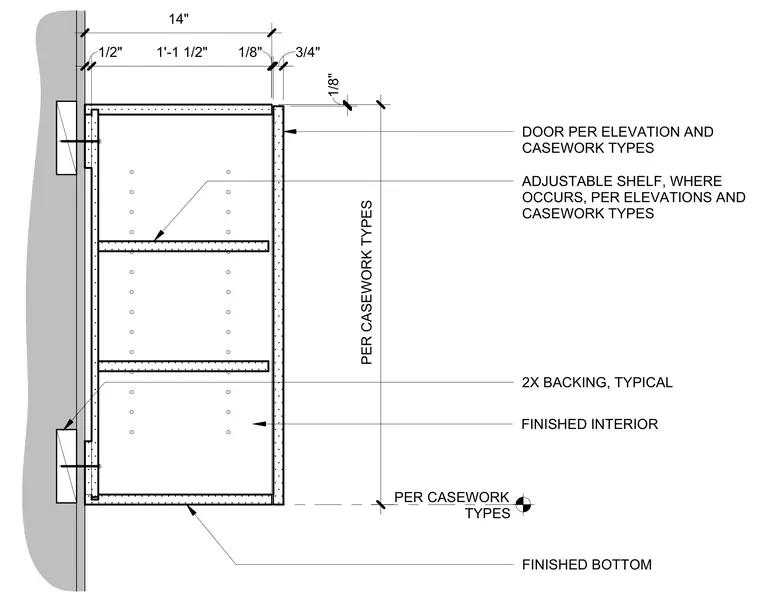

Upper casework mounts to the wall assembly using concealed two-inch by four-inch wood backing spaced per casework types. The cabinet features a finished interior, finished bottom, and adjustable shelving supported on pin holes where indicated. Cabinet doors align with the front face per casework specifications, maintaining tight dimensional clearances.
14" 1/2" 1'-1 1/2" 1/8" 3/4" PER CASEWORK TYPES 1/8" PER CASEWORK TYPES DOOR PER ELEVATION AND CASEWORK TYPES ADJUSTABLE SHELF, WHERE OCCURS, PER ELEVATIONS AND CASEWORK TYPES 2X BACKING, TYPICAL FINISHED BOTTOM FINISHED INTERIOR
