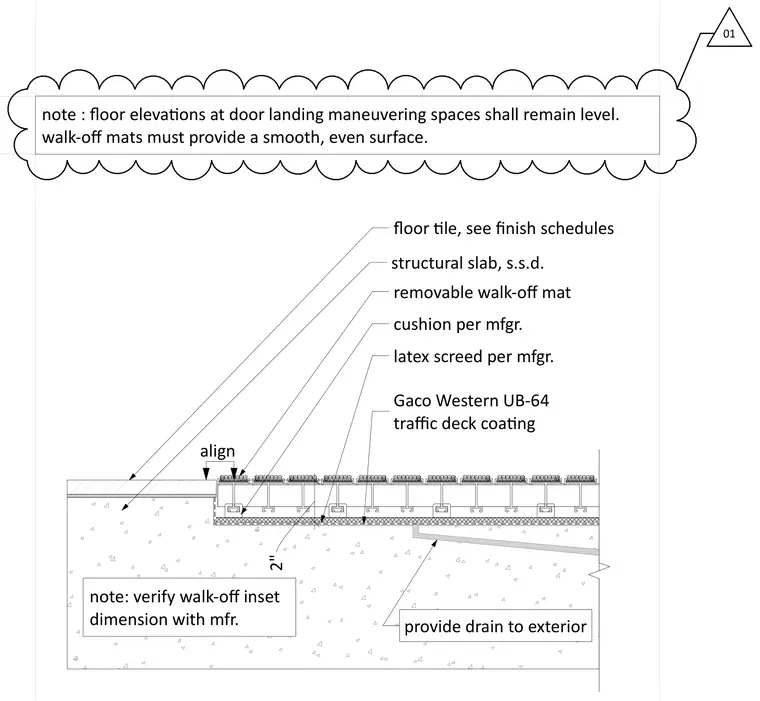

A removable walk-off mat sits on a cushion and latex screed over a structural concrete slab finished with Gaco Western UB-64 traffic deck coating. A drain is provided to the exterior within the slab recess. The adjacent floor receives floor tile per finish schedules. Floor elevations at door landing maneuvering spaces must remain level to provide a smooth, even surface, and the walk-off inset dimension must be verified with the manufacturer.
2" floor Ɵle, see finish schedules structural slab, s.s.d. removable walk-off mat cushion per mfgr. latex screed per mfgr. provide drain to exterior Gaco Western UB-64 traffic deck coa Ɵng align note: verify walk-off inset dimension with mfr. 01 note : floor eleva Ɵons at door landing maneuvering spaces shall remain level. walk-off mats must provide a smooth, even surface.
