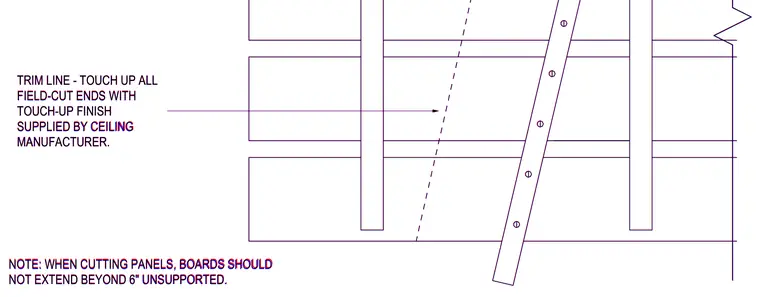

Wood plank ceiling panels require all field-cut ends to be touched up with finish supplied by the ceiling manufacturer. Cut panels and boards must not extend beyond six inches unsupported.
TRIM LINE - TOUCH UP ALL FIELD-CUT ENDS WITH TOUCH-UP FINISH SUPPLIED BY CEILING MANUFACTURER. NOTE: WHEN CUTTING PANELS, BOARDS SHOULD NOT EXTEND BEYOND 6" UNSUPPORTED. TRIM LINE - TOUCH UP ALL FIELD-CUT ENDS WITH TOUCH-UP FINISH SUPPLIED BY CEILING MANUFACTURER. NOTE: WHEN CUTTING PANELS, BOARDS SHOULD NOT EXTEND BEYOND 6" UNSUPPORTED.
