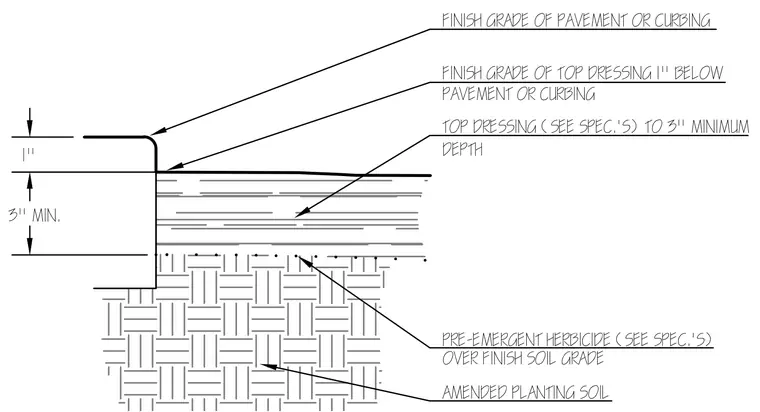

Amended planting soil sits below a pre-emergent herbicide layer and a top dressing material with a three-inch minimum depth. The finish grade of the top dressing is set one inch below the adjacent pavement or curbing. The finish grade of the pavement or curbing aligns higher than the finish soil grade.
FINISH GRADE OF TOP DRESSING 1" BELOW PAVEMENT OR CURBING TOP DRESSING (SEE SPEC.'S) TO 3" MINIMUM PRE-EMERGENT HERBICIDE (SEE SPEC.'S) AMENDED PLANTING SOIL 1" 3" MIN. DEPTH FINISH GRADE OF PAVEMENT OR CURBING OVER FINISH SOIL GRADE
