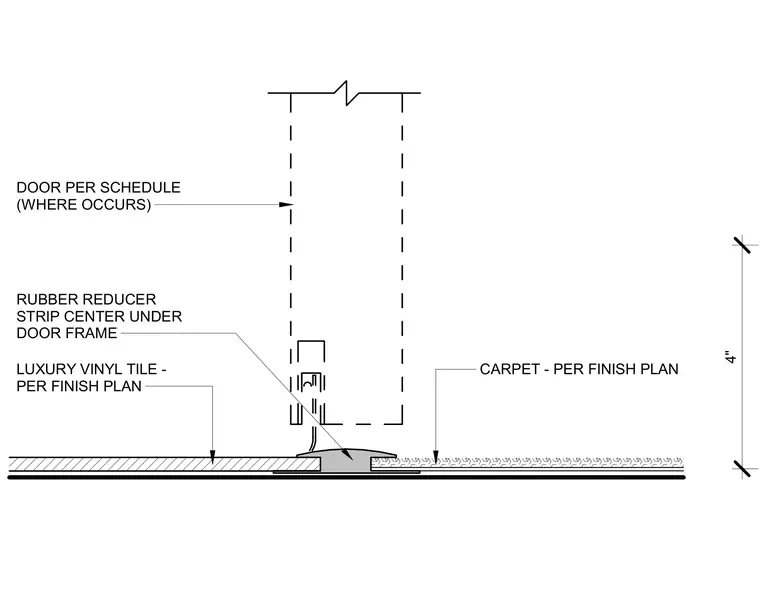

A luxury vinyl tile floor meets a carpet floor at a door frame threshold. A four-inch rubber reducer strip centers directly under the door frame to bridge the transition between the two finish materials. Both the luxury vinyl tile and the carpet are installed per the finish plan. A door per schedule occurs above the frame.
4" RUBBER REDUCER STRIP CENTER UNDER DOOR FRAME CARPET - PER FINISH PLAN LUXURY VINYL TILE - PER FINISH PLAN DOOR PER SCHEDULE (WHERE OCCURS)
