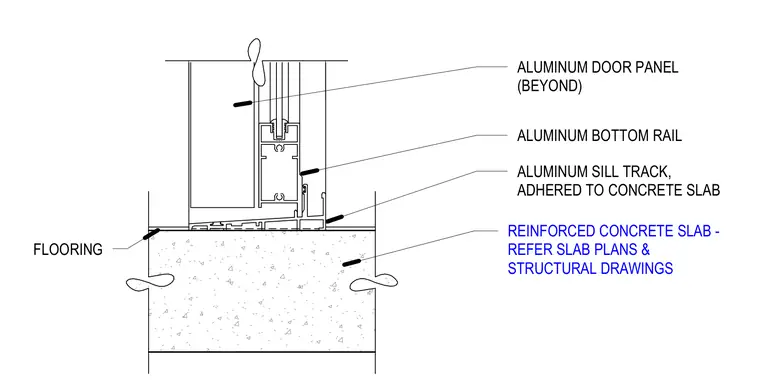

An aluminum sill track is adhered directly to a reinforced concrete slab supporting an aluminum sliding door. The aluminum bottom rail sits within the sill track, aligning with the aluminum door panel shown beyond. Finished flooring meets the base of the aluminum track at the slab level.
FLOORING REINFORCED CONCRETE SLAB - REFER SLAB PLANS & STRUCTURAL DRAWINGS ALUMINUM BOTTOM RAIL ALUMINUM SILL TRACK, ADHERED TO CONCRETE SLAB ALUMINUM DOOR PANEL (BEYOND)
