Architectural · A-TX9PE

Concrete Filled Steel Pipe Bollard

Materials

Elements

About this detail

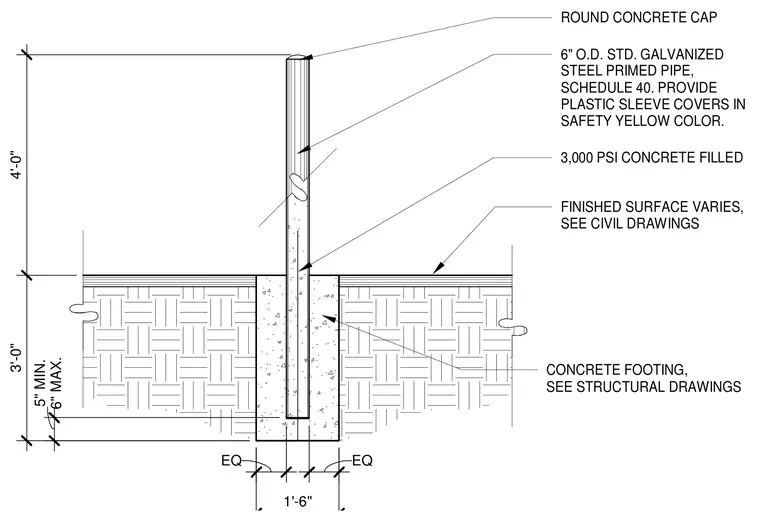

A six-inch outside diameter standard galvanized steel primed pipe, schedule 40, is filled with 3,000 PSI concrete and topped with a round concrete cap. The pipe is encased in a plastic sleeve cover in safety yellow color and extends four feet above the finished surface. The assembly embeds three feet into a one-foot-six-inch wide concrete footing sized per structural drawings.
