Architectural · A-TX5NW

Wall Mounted Countertop

Materials

Steel Timber / Wood

Elements

Walls Floors / Slabs Drainage Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Welded Connection

About this detail

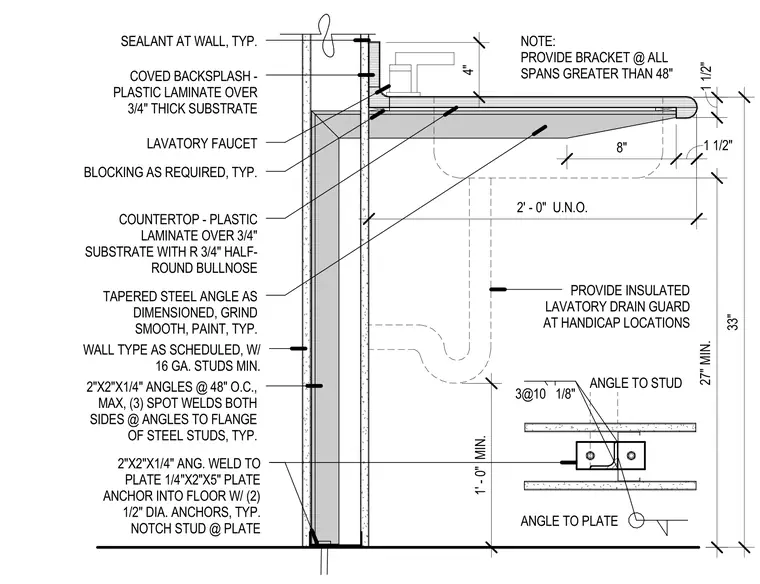

A wall-mounted countertop and lavatory assembly is supported by a system of steel angles and plates attached to metal stud framing. The countertop consists of a plastic laminate surface over a three-quarter inch thick substrate featuring a three-quarter inch radius half-round bullnose edge and a coved backsplash sealed against the wall. Framing utilizes minimum 16 gauge steel studs supporting two-inch by two-inch by one-quarter-inch steel angles spaced at forty-eight inches on center maximum, connected with three spot welds on both sides to the stud flanges and notched at the floor plate. A one-quarter-inch by two-inch by five-inch base plate anchors into the floor using two one-half-inch diameter anchors. Additional brackets are required for all spans greater than forty-eight inches, and handicap locations require an insulated lavatory drain guard.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
