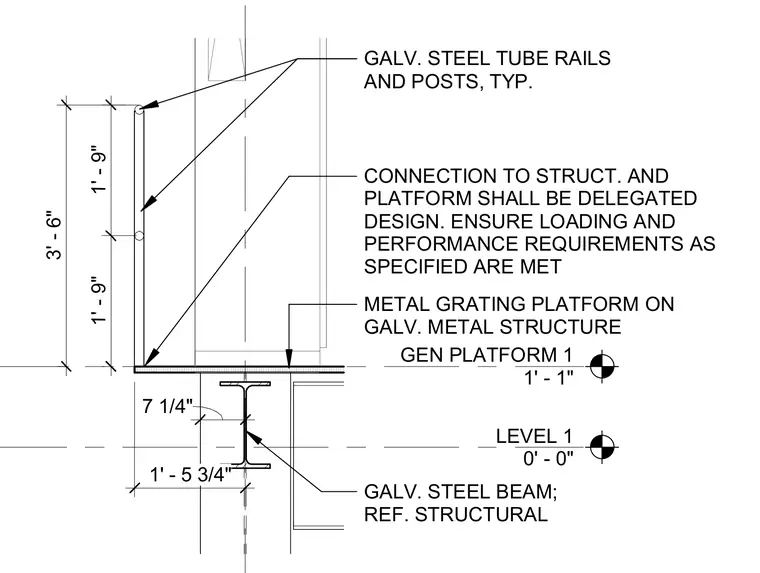

A galvanized metal grating platform rests on a structural steel beam with delegated design connections for the platform and structure. Galvanized steel tube rails and posts form a three-foot-six-inch high guardrail assembly above the platform surface. The overall platform elevation is set at one foot one inch relative to Level 1 at zero feet zero inches.
LEVEL 1 0' - 0" GEN PLATFORM 1 1' - 1" 1' - 9" 1' - 9" 3' - 6" 1' - 5 3/4" GALV. STEEL TUBE RAILS AND POSTS, TYP. GALV. STEEL BEAM; REF. STRUCTURAL METAL GRATING PLATFORM ON GALV. METAL STRUCTURE CONNECTION TO STRUCT. AND PLATFORM SHALL BE DELEGATED DESIGN. ENSURE LOADING AND PERFORMANCE REQUIREMENTS AS SPECIFIED ARE MET 7 1/4"
