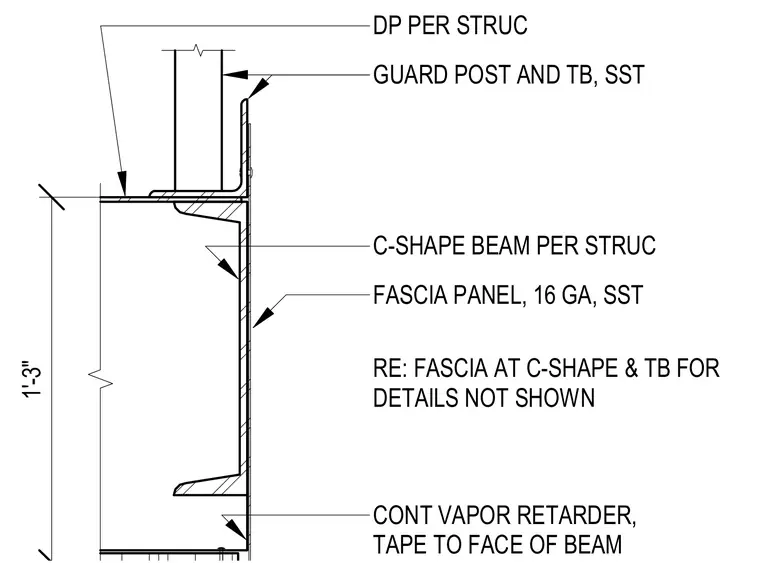

A 16-gauge stainless steel fascia panel clads the face of a structural C-shape beam with a continuous vapor retarder taped to the face of the beam. A stainless steel guard post and tie-back assembly attaches to the top flange of the beam. The overall height of the fascia assembly measures 1 foot 3 inches.
1'-3" DP PER STRUC GUARD POST AND TB, SST FASCIA PANEL, 16 GA, SST CONT VAPOR RETARDER, TAPE TO FACE OF BEAM RE: FASCIA AT C-SHAPE & TB FOR DETAILS NOT SHOWN C-SHAPE BEAM PER STRUC
