A recessed box for a flat panel display is integrated within a partition framed per schedule. The assembly accommodates a tackboard or tackable acoustical wall panel installed according to interior elevations and finish schedule keys. A one-gang junction box and conduit knockout are included with routing coordinated per audiovisual drawings. The unit is secured using Z-clips installed per manufacturer requirements.

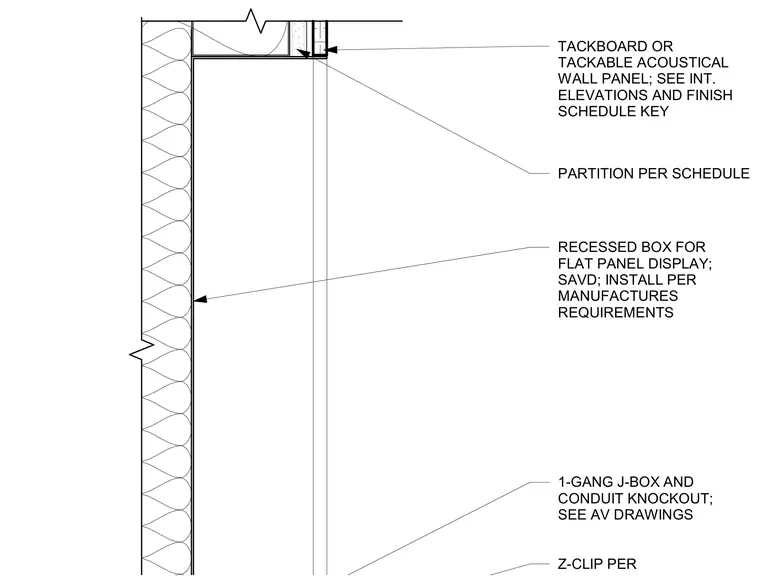

TACKBOARD OR TACKABLE ACOUSTICAL WALL PANEL; SEE INT. ELEVATIONS AND FINISH SCHEDULE KEY RECESSED BOX FOR FLAT PANEL DISPLAY; SAVD; INSTALL PER MANUFACTURES REQUIREMENTS PARTITION PER SCHEDULE Z-CLIP PER 1-GANG J-BOX AND CONDUIT KNOCKOUT; SEE AV DRAWINGS
